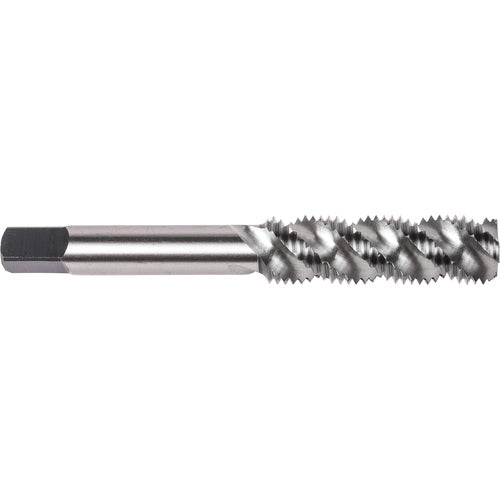

1/2″- 13 3 Flute Plug Union Butterfield HSS Bright UNC Machine Tap Spiral Flute 52 ANSI E-code # 15881/2X13NO2
Item #: TD351010414
Brand: Union Butterfield
Model #: 6007775
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 13 |
| Tool Type | Machine Tap |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 3-3/8″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1-21/32″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Length Group | 2.5D |
| Cutting Edge Material | HSS |
| Square Size | 0.275″ |
| Thread Tolerance Class (TCTR) | 2B|3B|H3 |
| Measurement Type | Fractional |
