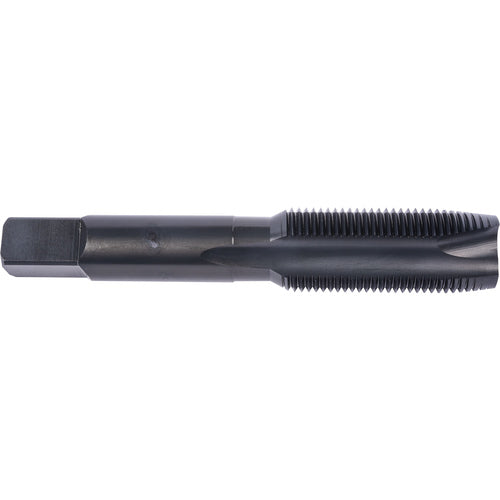

5/8″- 11 3 Flute Plug Union Butterfield HSS Steam Tempered UNC Machine Tap ANSI E-code # 19855/8X11
Item #: TD541013061
Brand: Union Butterfield
Model #: 6008811
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium |
| Thread Size | 5/8″ - 11 |
| Connection Diameter Machine Side (DCONMS) | 0.36″ |
| Thread Diameter Size (TDZ) | 5/8″ |
| Thread Cutting Part Length (THL) | 1-13/16″ |
| Threads per Inch (TPI) | 11 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Plug |
| Overall Length (OAL) | 3-13/16″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS |
| Square Size | 9/16″ |
| Standard | ANSI |
| Measurement Type | Fractional |
| Tool Type | Machine Tap |
