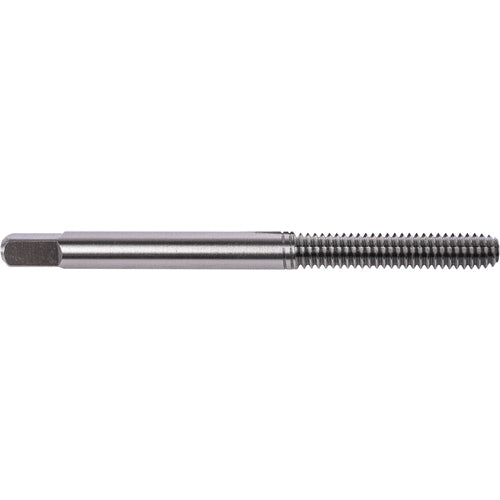

5/16″- 18 Plug Union Butterfield HSS Bright UNC Rol-Form Fluteless ANSI E-code # 33005/16X18H7NO2
Item #: TD591310188
Brand: Union Butterfield
Model #: 6009432
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-23/32″ |
| Threads per Inch (TPI) | 18 |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Length Group | 3D |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Square Size | 0.238″ |
| Thread Tolerance Class (TCTR) | 2B|3B|H7 |
| Measurement Type | Fractional |
| Tap Standard | ANSI |
| Style | Plug |
| Thread Standard | NC |
| Cutting Edge Material | HSS |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Thread Size | 5/16″ - 18 |
