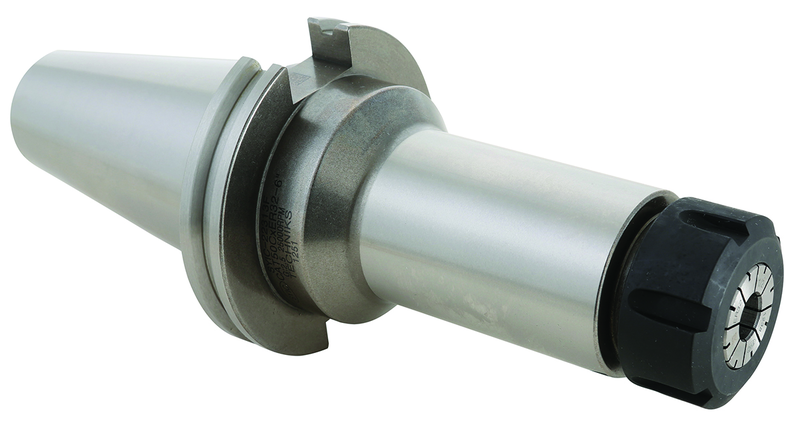

CAT50 x ER32 x 4 w/ Coolflex - Collet Chuck

Item #: TE1222311F
Manufacturer: Techniks
Mfg #: 22311F

Technical Specifications:
*Brand Name: Techniks *Capacity: ER32 *Chuck Size: CAT50 *Collets Included: No *Coolant Supply: Coolant-thru Flange (DIN B) or thru Spindle with Coolant Capable Rentention Knob, sold separately *Head Length/Projection: 4 *Model Number: 22311F *Mount: CAT50 *Nut Diameter: 1.97 *Overall Length: 8 *Size/Range: .043 - .827 *Spindle Interface: CAT50 *Weight: 8.5 lbs *Wrench Number: TE1204616

Description:
*Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B * Simply remove two stop screws for DIN B *The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket *Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report *

Shipping Info:
*Actual Weight - 8.5000 *Dimensions - Height: 9.00 Length: 5.00 Width: 5.00
