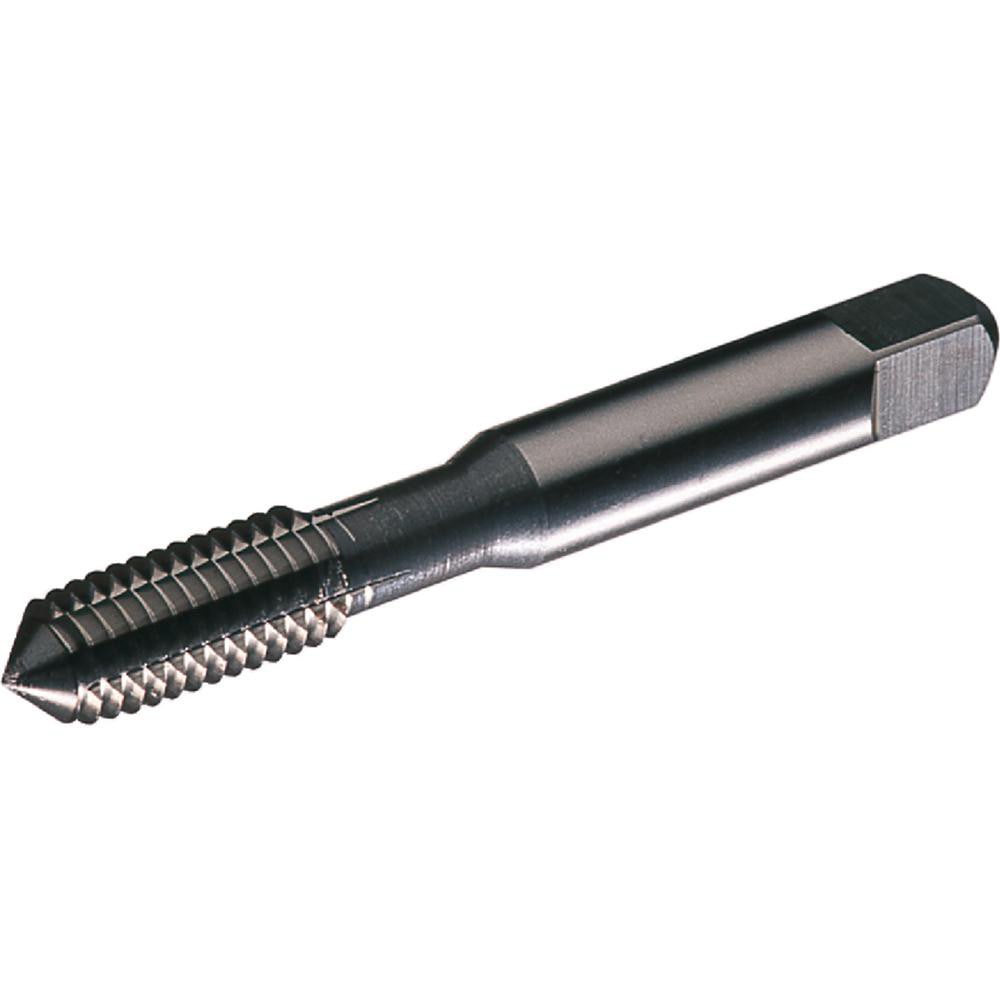

Brand: Widia / Part #: 2746298
Item #: 18016915
Brand: Widia
Model #: 2746298
Product Specifications
| Thread Size (Inch) | 3/8-16 |
| Overall Length (Decimal Inch) | 2.9400 |
| Chamfer | Bottoming |
| Coating/Finish | TiN |
| Thread Limit | H5 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Depth | 1.2500 |
| Thread Depth (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Neck Length (Decimal Inch) | 0.5000 |
| Square Length (Decimal Inch) | 0.4375 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 2502 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 1.6900 |
| Threads per Inch | 16 |
| Class Of Fit | 2B |
| Coolant Through | No |
