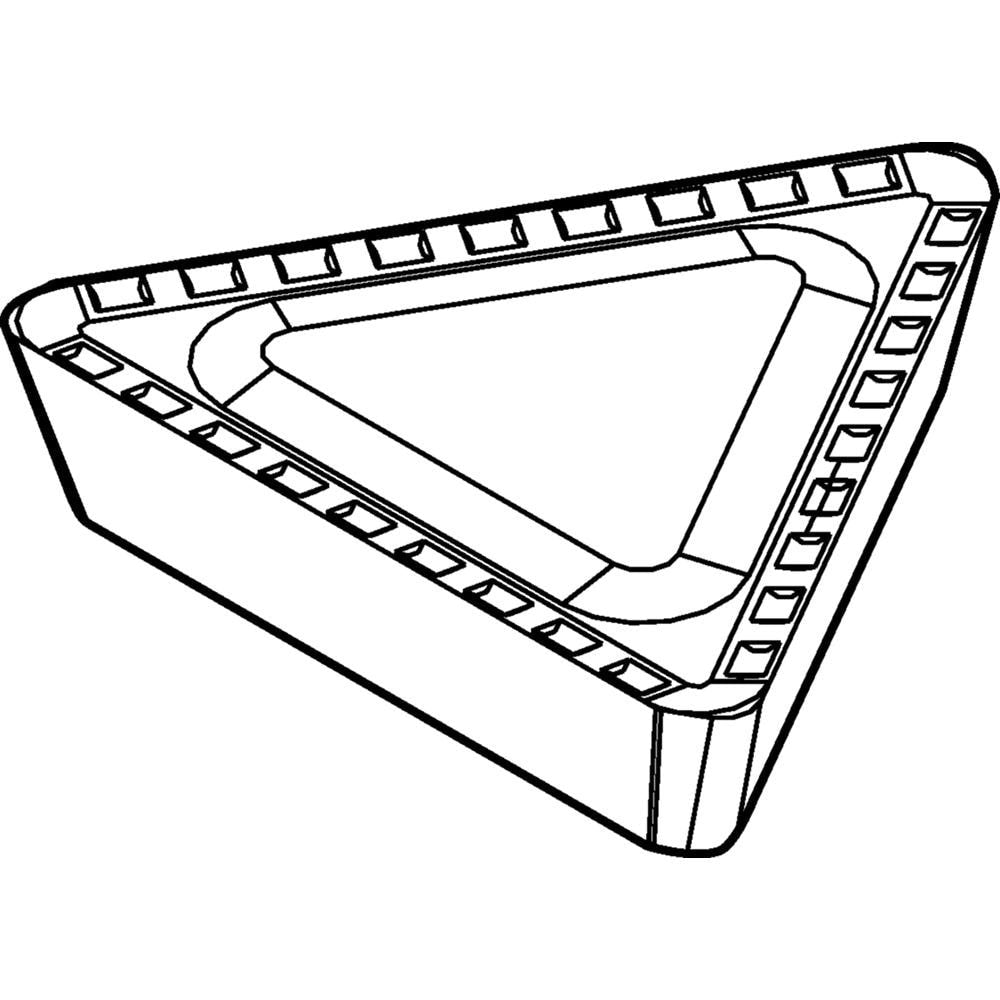

Brand: Widia / Part #: 5107759
Item #: 95157970
Brand: Widia
Model #: 5107759
Product Specifications
| Insert Style | TPKR |
| Insert Size Code | 1603 |
| Insert Size | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | THM |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.000 |
| Series | TPKR |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6495 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | TPKR1603PDRMS |
| Iso Code | TPKR1603PDRMS |
| Manufacturers Catalog Number | TPKR1603PDRMS |
| Chip Breaker | MS |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Triangle |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.6495 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6495 |
