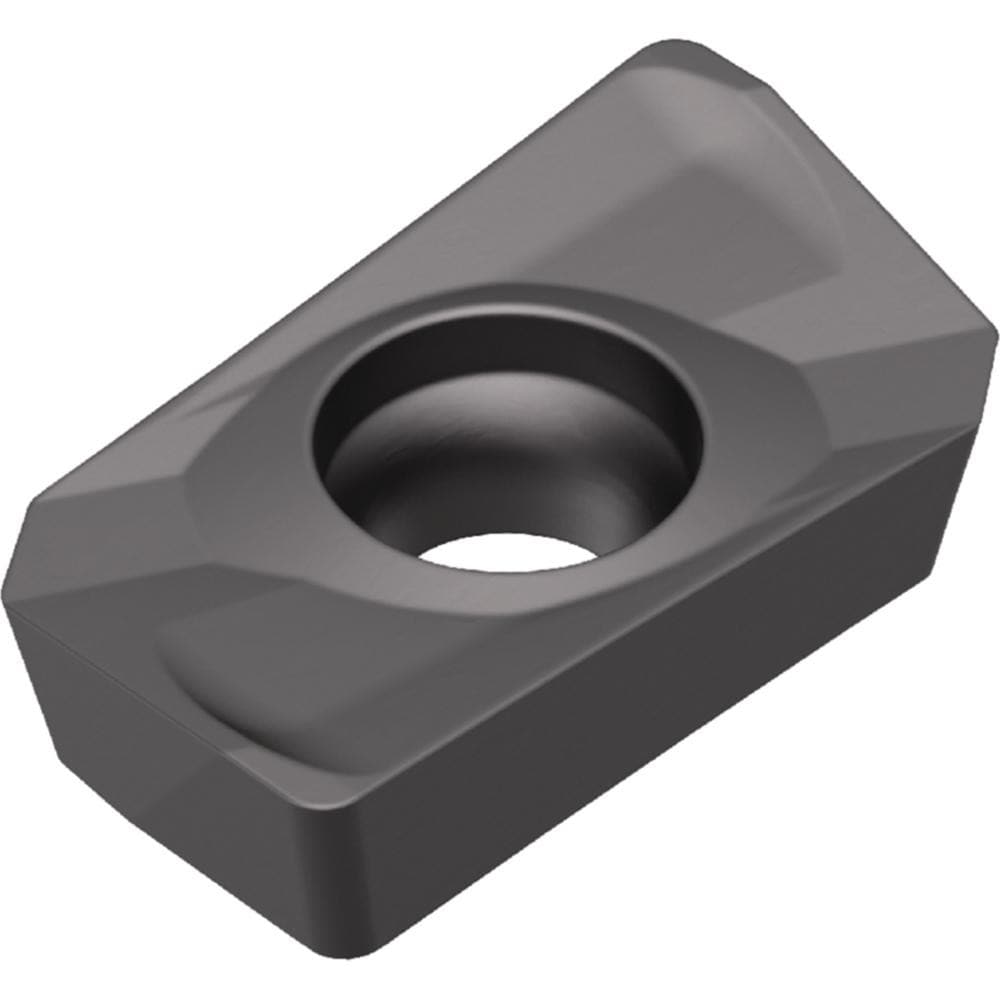

Brand: Widia / Part #: 6196991
Item #: 95217329
Brand: Widia
Model #: 6196991
Product Specifications
| Insert Style | APMT |
| Insert Size Code | 1604 |
| Insert Size | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | WU20PM |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.3638 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 11.000 |
| Series | APMT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.6689 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | APMT1604PDR |
| Iso Code | APMT1604PDR |
| Manufacturers Catalog Number | APMT1604PDR |
| Cutter Series Compatibility | CIP MILLING |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Length of Cut (mm) | 17.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Length | 17.00 |
| Width (Decimal Inch - 4 Decimals) | 0.3638 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6689 |
