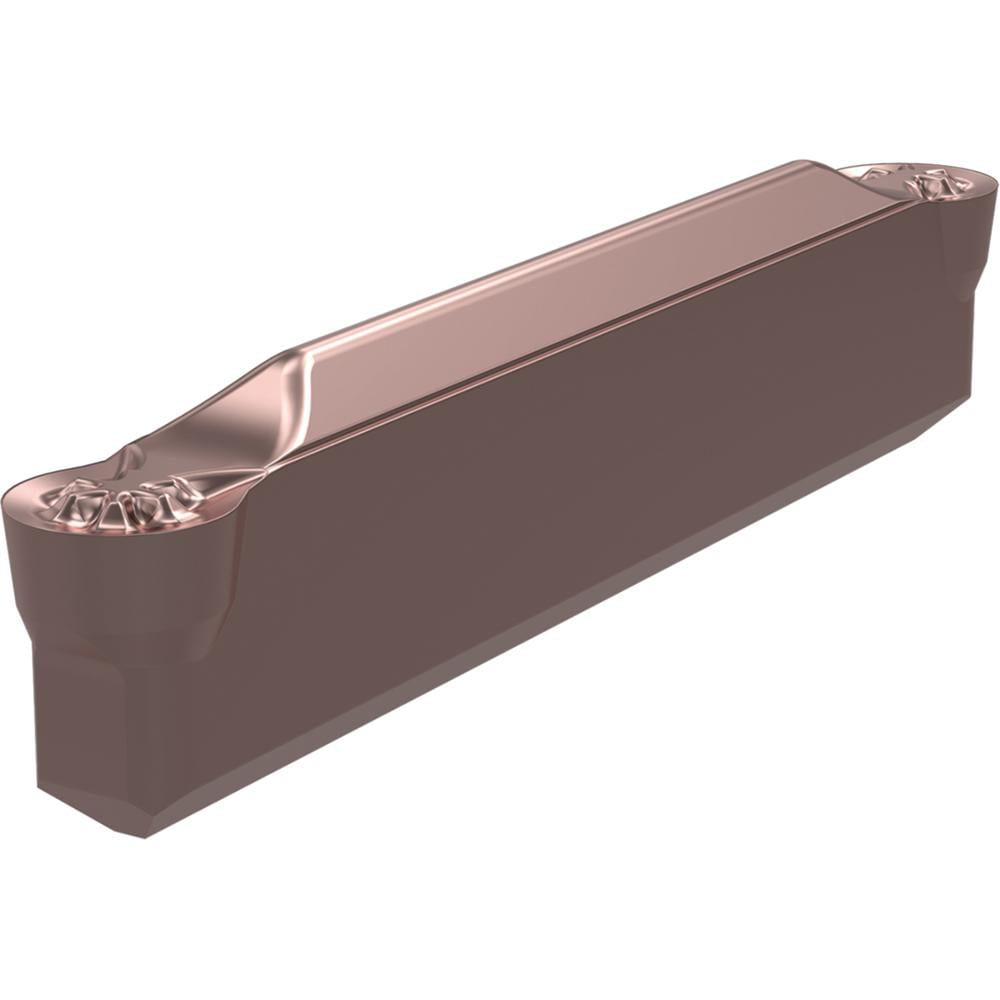

Brand: Widia / Part #: 4170174
Item #: 94497666
Brand: Widia
Model #: 4170174
Product Specifications
| Insert Style | WMTR |
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | WP10CT |
| Cutting Width (Decimal Inch) | 0.1230 |
| Maximum Depth of Cut (Decimal Inch) | 0.9450 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0600 |
| Lead Angle | 0.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Series | WMT |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 1.0050 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | WMTR305M3UPC |
| Iso Code | WMTR305M3UPC |
| Relief Angle | 6 |
| Chip Breaker | PC |
| Coating Classification | CVD |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1230 |
| Included Angle Degree | 90 |
| Coating/Finish | TiN |
| Number Of Cutting Edges | 2 |
