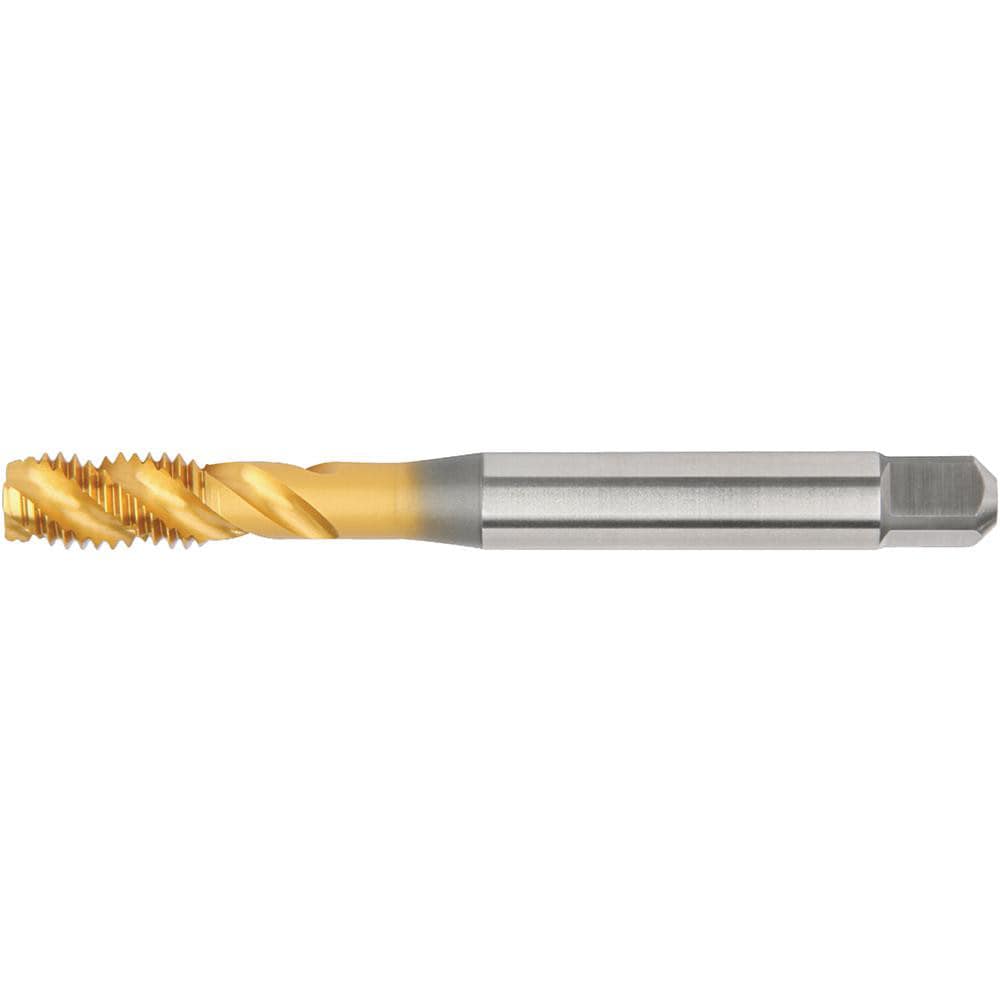

Brand: Widia / Part #: 6172446
Item #: 94802881
Brand: Widia
Model #: 6172446
Product Specifications
| Thread Size (mm) | M5x0.8 |
| Chamfer | Plug |
| Thread Limit | D4 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 32 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 25.90 |
| Coolant Through | No |
| Thread Length (mm) | 8.00 |
| Overall Length (mm) | 70.0000 |
| Thread Pitch (mm) | 0.80 |
| Thread Standard | Metric |
| Material Grade | WU41EG |
| Shank Diameter (mm) | 6.0000 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 4.90 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
