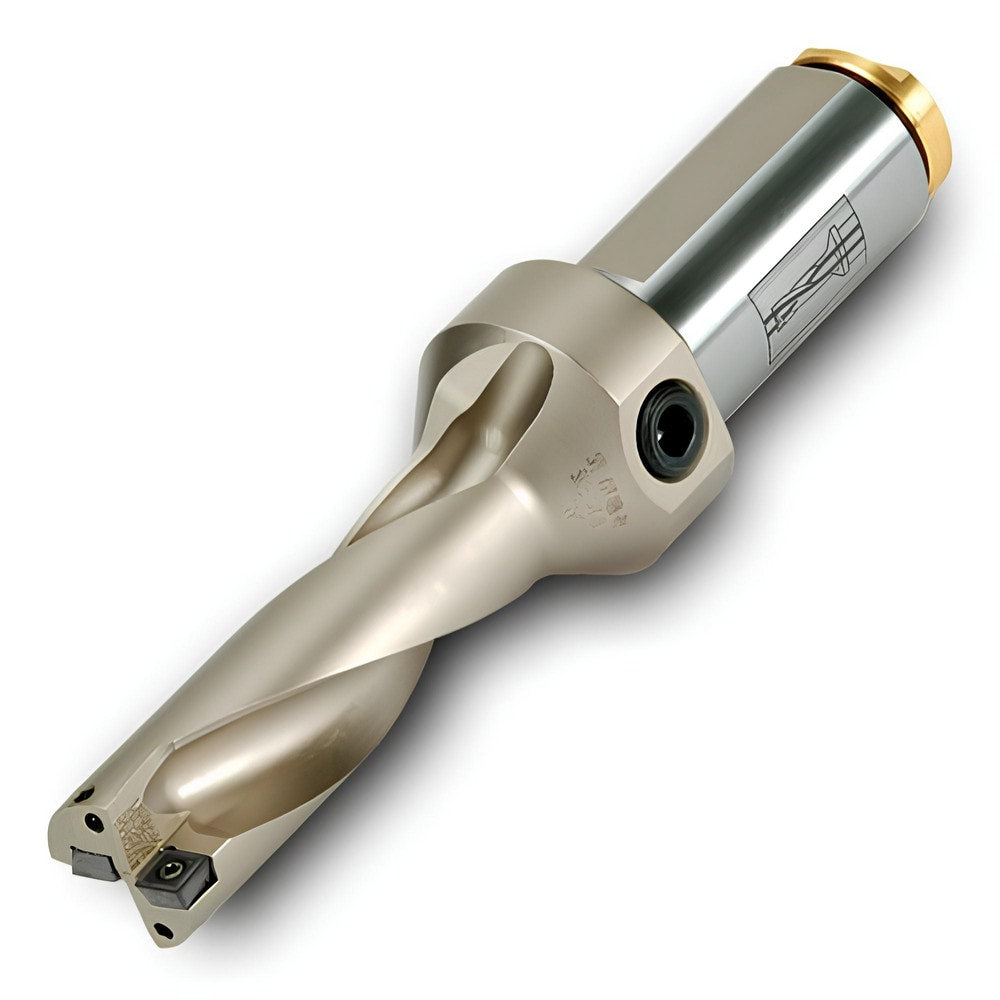

Brand: Ingersoll Cutting Tools / Part #: 6180766
Item #: 95935292
Brand: Ingersoll Cutting Tools
Model #: 6180766
Product Specifications
| Maximum Drill Depth | 4.8800 in |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Depth of Cut (Decimal Inch) | 4.8800 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (Decimal Inch) | 6.7700 |
| Toolholder Style | Q041 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6250 |
| Overall Length (Decimal Inch) | 9.1300 |
| Overall Length | 9.13 |
| Through Coolant | Yes |
| Series | Q |
| Flute Length (Decimal Inch) | 4.8800 |
| Shank Length (Decimal Inch) | 2.3600 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (Decimal Inch) | 1.6250 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
