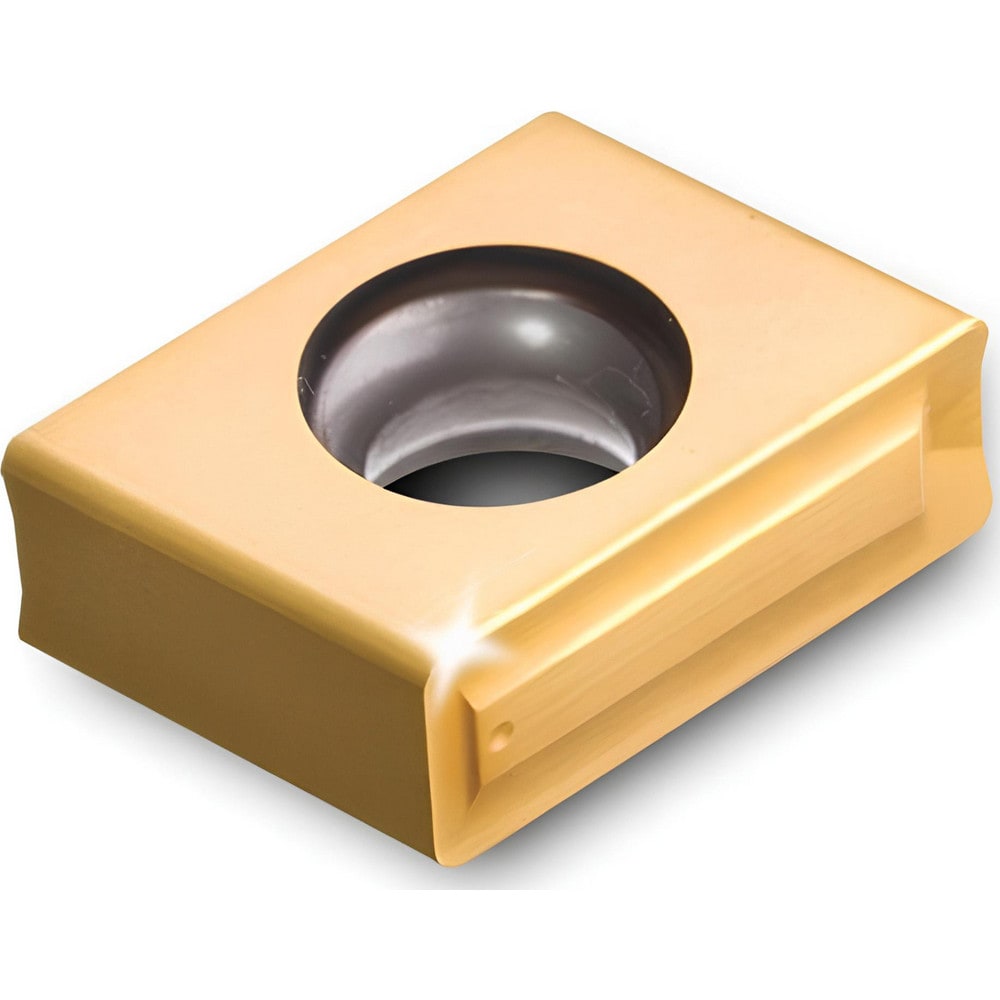

Brand: Ingersoll Cutting Tools / Part #: 6338613
Item #: 67300350
Brand: Ingersoll Cutting Tools
Model #: 6338613
Product Specifications
| Insert Style | DCM |
| Insert Size Code | 323 |
| Insert Material | Carbide |
| Manufacturer Grade | IN6537 |
| Length (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.4300 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | DCM |
| Coating Process | MTCVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | DCM323R01 |
| Rake Angle | 7.000 |
| Manufacturers Catalog Number | DCM323R01 IN6537 |
| Cutter Series Compatibility | 2TW7K |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 12.9000 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.0169 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0083 |
| Multi-Use Tool | Yes |
