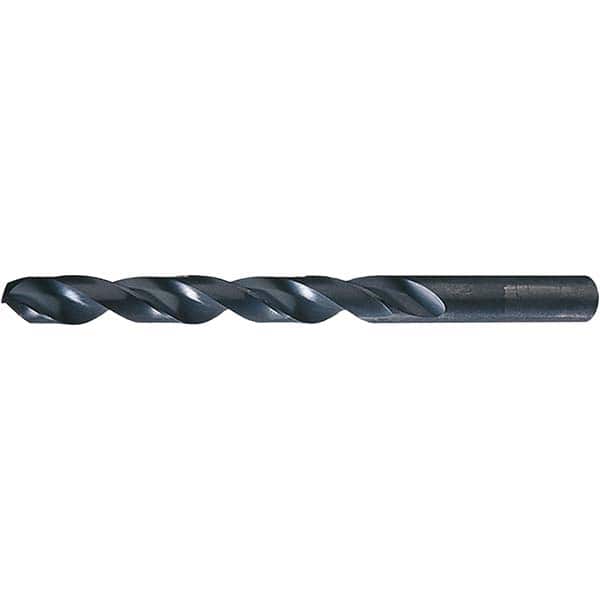

Cle-Line - Jobber Length Drill Bits Drill Bit Size (Inch): 0.375 Drill Bit Size (Decimal Inch): 0.3800
Item #: 14286421
Brand: Cle-Line
Model #: C23145BP
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Steam oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Jobber Length Drill Bits; Drill Bit Size (Inch): 0.375 ; Drill Bit Size (Decimal Inch): 0.3800 ; Drill Point Angle: 135 ; Drill Bit Material: High Speed Steel ; Drill Bit Finish/Coating: Steam Oxide ; Flute Type: Spiral
| Drill Bit Size (Inch) | 0.375 |
| Drill Bit Size (Decimal Inch) | 0.3800 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Steam Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Decimal Inch) | 3.6300 |
| Overall Length (Decimal Inch) | 5.00000 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.3800 |
| Maximum Drilling Depth (Decimal Inch) | 0.9400 |
| Spiral Type | Regular Spiral |
| Shank Length (Inch) | 1-3/8 |
| Specification Designation | ANSI |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Number of Flutes | 2 |
| PSC Code | 5133 |
| Drill Bit Grade | Heavy Duty |
| Material Grade | HSS |
| Series/List | 1801 |
