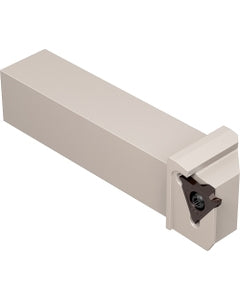

KGBAL 2020K2215JCT, Coolant-Through External Grooving Toolholder
Item #: KY96THC14872
Brand: Kyocera Precision Tools
Model #: THC14872
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.33 mm |
| Overall Length (OAL) | 125 mm |
| Cutting Width Maximum (CWX) | 3 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 4 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 20 mm |
| Application | | Shallow Grooving | |
| Shank Width (B) | 20 mm |
| Body Material | Steel |
| Functional Width (WF) | 25 mm |
| Series/List # | GBAJ |
| Functional Length (LF) | 125 mm |
| Measurement Type | Metric |
| Head Length (LH) | 26.5 mm |
| Shank Length (LS) | 98.5 mm |
