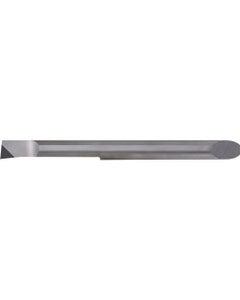

EZBR 050050003NB KBN05M Grade CBN, Micro Boring Bar
Item #: KY99TBN30405
Brand: Kyocera Precision Tools
Model #: TBN30405
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Usable Length (LU) | 25 mm |
| Minimum Bore Diameter (DMIN) | 5 mm |
| Shank Height (H) | 4.6 mm |
| Functional Length (LF) | 58.1 mm |
| Cutting Edge Material | CBN |
| Cutting Direction (HAND) | Right Hand |
| Style | EZB-NB |
| Coating | MEGACOAT |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Grade | KBN05M |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Application | | Micro Boring | |
| Series/List # | EZB |
| Applicable Material | | Hard Materials | |
| Measurement Type | Metric |
| Corner Radius (RE) | 0.001″ |
| Overall Length (OAL) | 58.1 mm |
| Functional Width (WF) | 2.25 mm |
