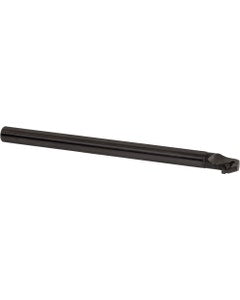

S16QSDZCL1123A Left-Hand, Positive Rake, Boring Bar
Item #: KY96THC11803
Brand: Kyocera Precision Tools
Model #: THC11803
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 180 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 180 mm |
| Rake Angle Axial (GAMP) | 3 Degrees |
| Head Length (LH) | 15 mm |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 15 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 165 mm |
| Body Material | Steel |
| Functional Width (WF) | 14.5 mm |
| Style | S...SDZC-A |
| Master Insert Identification (MIID) | | DCGT325 | DCMX325 | DCMT325 | DCET325 | DCMW325 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 23 mm |
| Weight of Item (WT) | 0.7046 |
