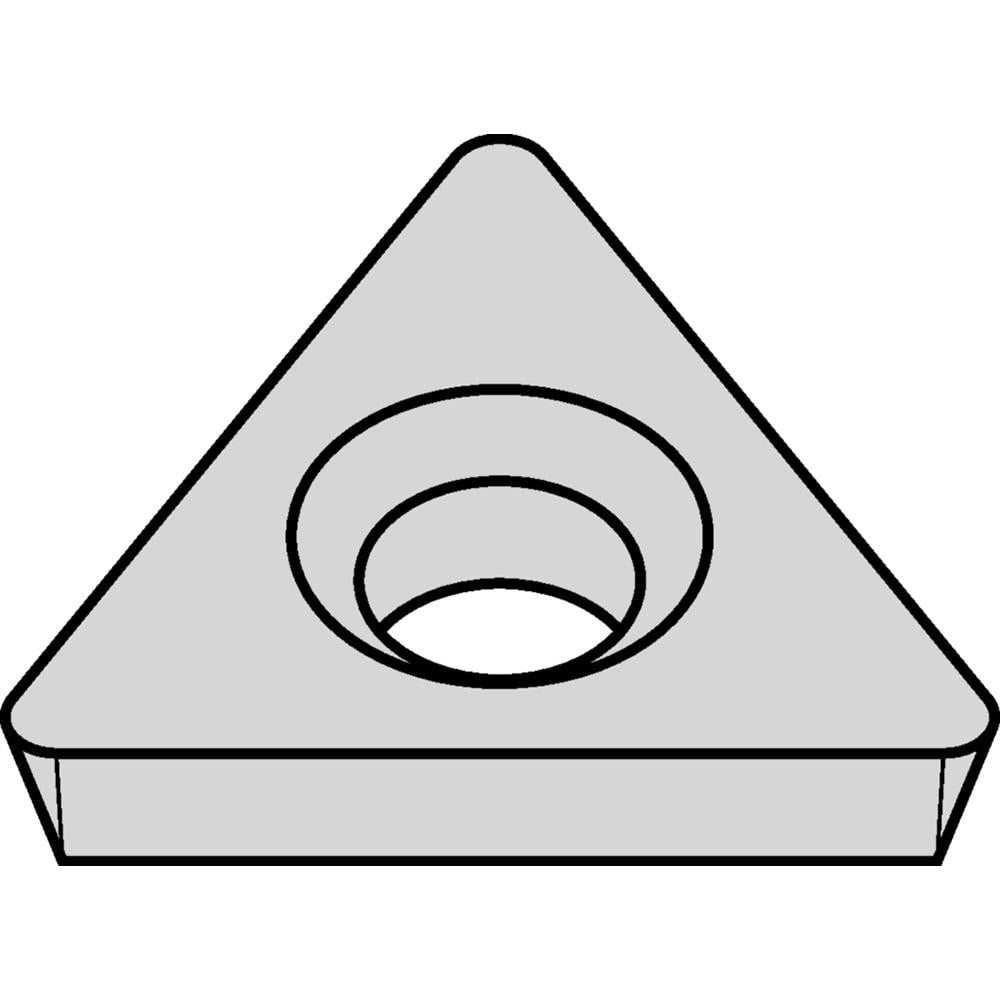

Brand: Widia / Part #: 2821822
Item #: 94117512
Brand: Widia
Model #: 2821822
Product Specifications
| Insert Style | TD |
| Insert Shape Code | T |
| Insert Size Code | 6P05 |
| Insert Shape | Triangle |
| Coating/Finish | TiCN; TiN; TiC |
| Manufacturer Grade | CG6 |
| Corner Radius (Decimal Inch) | 0.0071 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1270 |
| Clearance Code | P |
| Tolerance Code | H |
| Included Angle | 60.00 |
| Relief Angle | 11.000 |
| Series | TPHB |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 3 |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | TD6P05 |
| Iso Code | TPCB160302 |
| Manufacturers Catalog Number | TD6P05 |
| Cutting Direction | Neutral |
| Coating Classification | CVD |
| Chip Breaker | None |
| Style | TPHB |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning; Boring |
