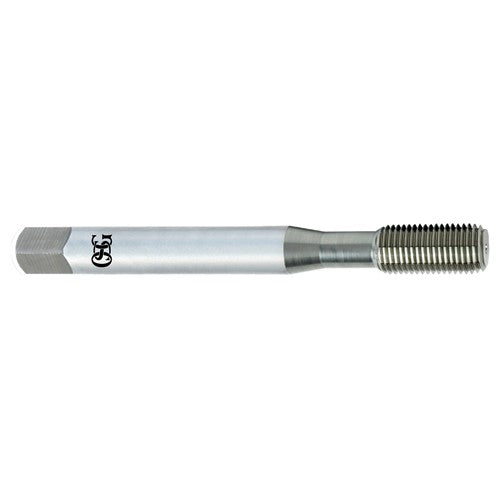

10-24 0 Fl H4 HSS-CO Forming Tap- TiN
Item #: TP221400119205
Brand: OSG USA, Inc.
Model #: 1400119205
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TiN |
| Thread Diameter Size (TDZ) | #10 |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.37″ |
| Threads per Inch (TPI) | 24 |
| Thread Cutting Part Length (THL) | 7/8″ |
| Helix Angle | 0 Degrees |
| Usable Length (LU) | 0.949″ |
| Chamfer | 4.5P |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Measurement Type | Wire Gage |
| Flute Count (NOF) | 0 |
| End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H4 |
| Cutting Edge Material | HSSCo |
| Thread Standard | UNC |
| Series/List # | 14001 |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials |
| Thread Size | #10 - 24 |
