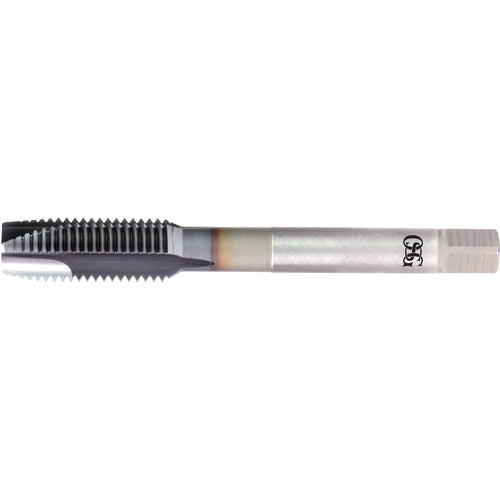

M15X2 D7 3S/P PLG A-TAP V
Item #: TP531651007208
Brand: OSG USA, Inc.
Model #: 1651007208
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Flute Count (NOF) | 3 |
| Thread Size | M15 × 2 |
| Cutting Edge Material | VC10 |
| Thread Diameter Size (TDZ) | M15 |
| Tool Type | Spiral Point Tap |
| Thread Pitch (TP) | 2 mm |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | D7 |
| Connection Diameter Machine Side (DCONMS) | 12.19 mm |
| Usable Length (LU) | 36 mm |
| Thread Cutting Part Length (THL) | 24 mm |
| Overall Length (OAL) | 110 mm |
| End Shape | Spiral Point |
| Chamfer | 2P-3P |
| Measurement Type | Metric |
| Coating | V Coating |
| Series/List # | 16510 |
