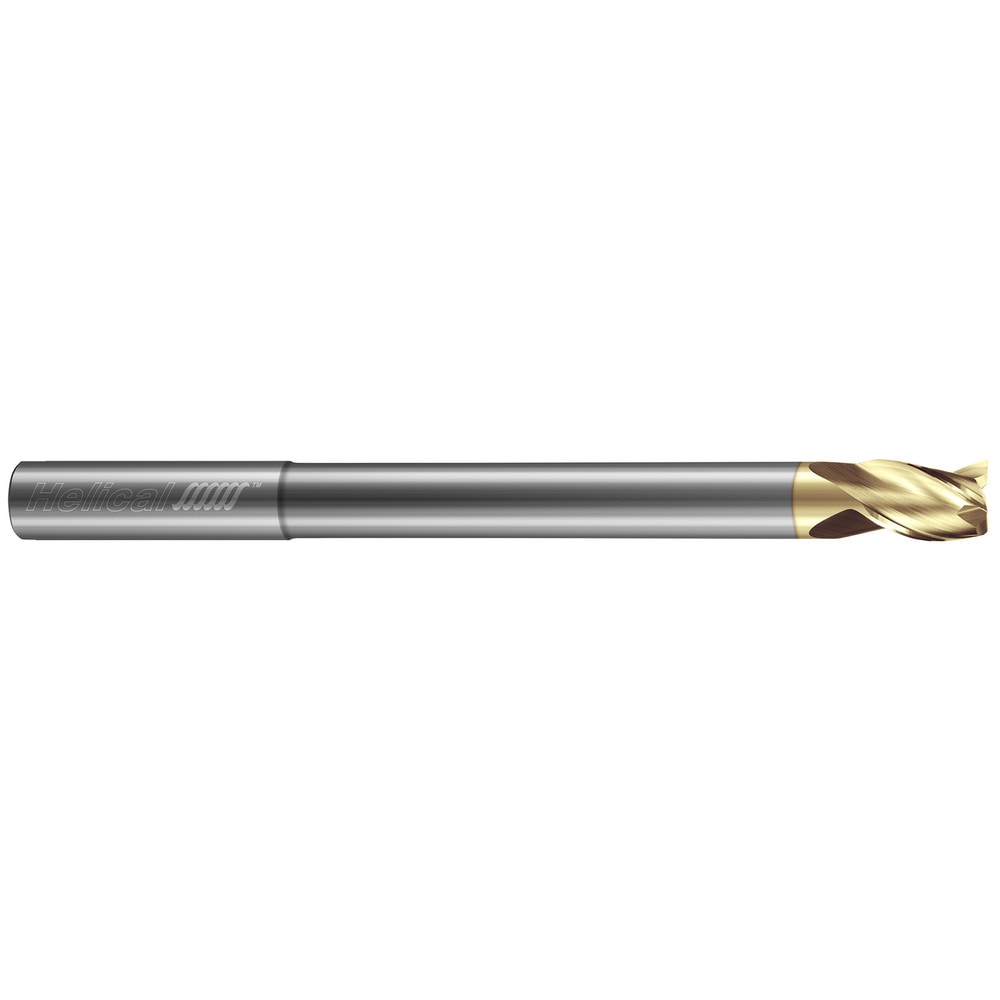

Brand: Helical Solutions / Part #: 04377
Item #: 90925173
Brand: Helical Solutions
Model #: 04377
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | Zplus |
| Overall Length (Inch) | 6 |
| Helix Angle | 35 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.7500 |
| Material Grade | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical Flute |
| Reach Length (Inch) | 3-3/8 |
| Reach Length (Decimal Inch) | 3.3750 |
| Series | End Mills for Aluminum - 3 Flute - Square - 35? Helix - Reduced Neck |
