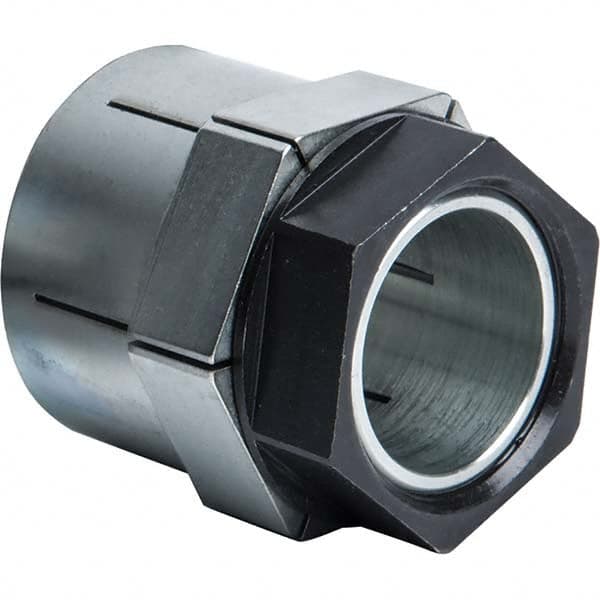

Climax Metal Products - Shaft Mounts Bore Diameter: 15.000 (mm) Contact Pressure on Hub (psi): 15,373.000
Item #: 19064047
Brand: Climax Metal Products
Model #: C801M-015
Product Specifications
Shaft Mounts; Bore Diameter: 15.000 (mm); Contact Pressure on Hub (psi): 15,373.000 ; Contact Pressure on Shaft (psi): 39,013.000 ; Maximum Torque Inch/Lbs: 1,065.00 (Pounds); Maximum Transmissible Thrust: 12,775.000 (Pounds); Outside Diameter (mm): 38.0000
| Bore Diameter (mm) | 15.000 |
| Contact Pressure on Hub (psi) | 15373.000 |
| Contact Pressure on Shaft (psi) | 39013.000 |
| Maximum Torque Inch/Lbs (Pounds) | 1065.00 |
| Maximum Transmissible Thrust (Pounds) | 12775.000 |
| Outside Diameter (mm) | 38.0000 |
| Overall Length (mm) | 38.1000 |
| Collar Thickness (mm) | 23.000 |
| Maximum Torque Newton/Meter | 218.0000 |
