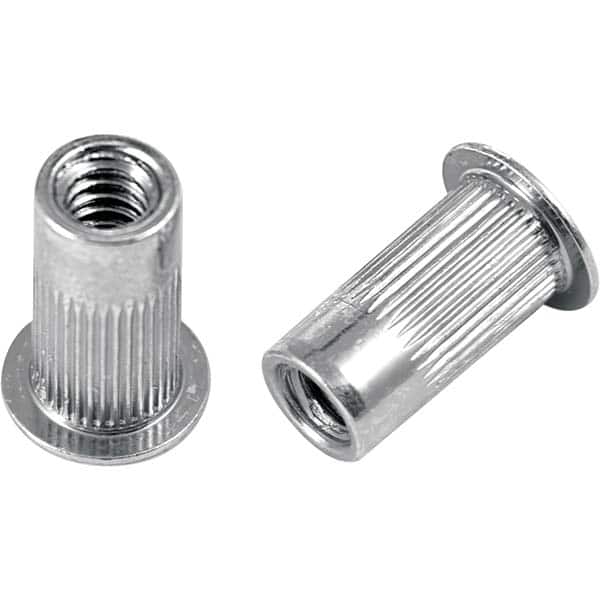

Marson - Rivet Nuts Type: Open End Material: Aluminum
Item #: 10322295
Brand: Marson
Model #: M57691
Features and Benefits
Open end rivet nuts have two open ends, which allow for the use of long screws and bolts. They also have heads with wide flanges that increase strength in softer materials.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Flange head types have flanges that extend from the rivet nut s head. Small flanges allow for a near-flush finish, while large flanges provide increased strength and prevent pull-through.
Product Specifications
Rivet Nuts; Type: Open End ; Material: Aluminum ; Head Type: Flange ; Thread Size: M10 x 1.5 ; Drill Size (Inch): 0.391 ; Minimum Grip (Decimal Inch): 3.8000
| Type | Open End |
| Material | Aluminum |
| Head Type | Flange |
| Thread Size | M10 x 1.5 |
| Drill Size (Inch) | 0.391 |
| Minimum Grip (Decimal Inch) | 3.8000 |
| Maximum Grip (Decimal Inch) | 7.9000 |
| Body Length (Decimal Inch) | 0.8900 |
| Body Diameter (Decimal Inch) | 0.2500 |
| Flange Diameter (Decimal Inch) | 0.0550 |
| Flange Thickness (Decimal Inch) | 0.0550 |
| Finish/Coating | Zinc Plated |
