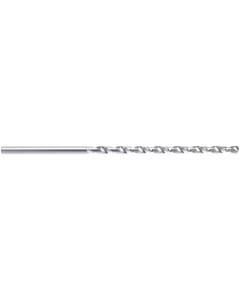

2.8 mm Dia. × 3 mm Shank Dia. × 90 mm OAL × 48 mm LCF, 140 Degrees, 15xD, 2 Flute, Uncoated - Solid Carbide Drills
Item #: FB506230280R
Brand: GMauvias
Model #: 6230280R
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 2.8 mm |
| Tool Type | Micro Drills |
| Length Group | 15xD |
| Usable Length (LU) | 48 mm |
| Coating | Uncoated |
| Length Chip Flute (LCF) | 48 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Overall Length (OAL) | 90 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 48 mm |
