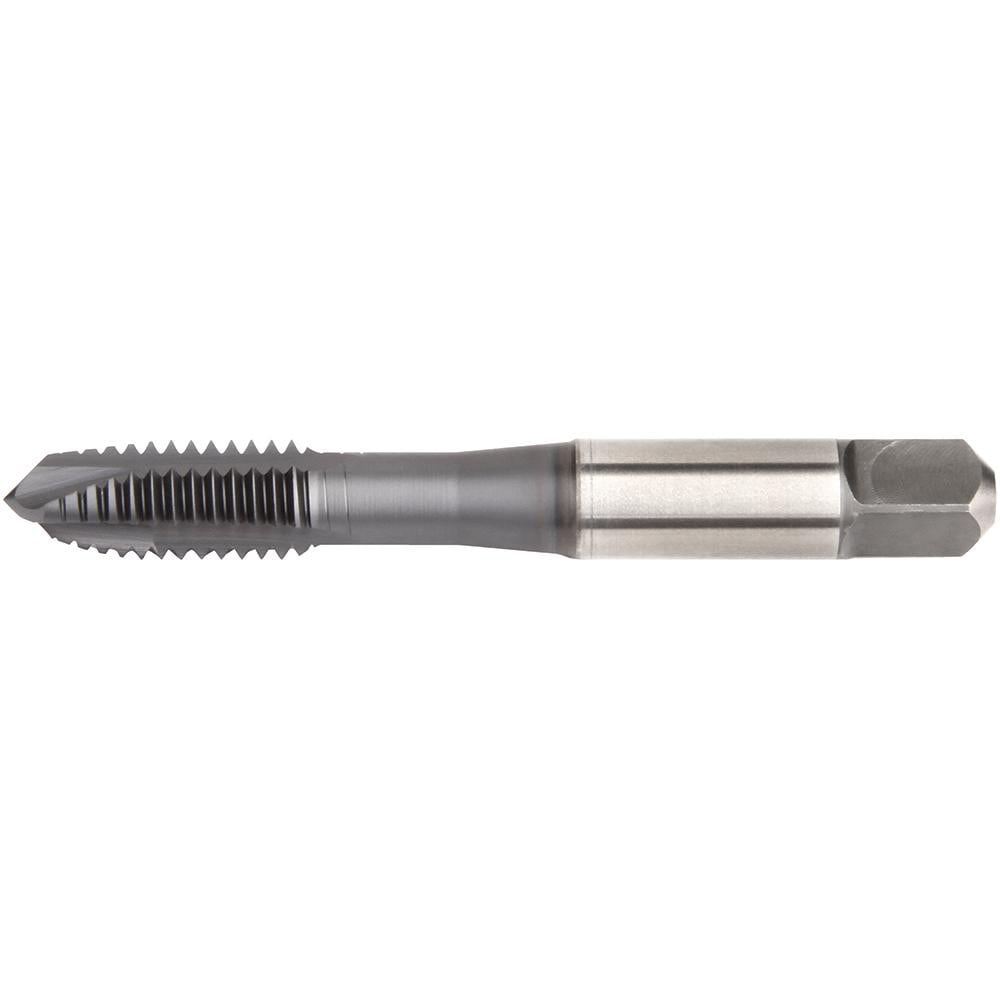

Brand: Widia / Part #: 5366450
Item #: 90890591
Brand: Widia
Model #: 5366450
Product Specifications
| Thread Size (Inch) | 1-3/8-12 |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Thread Limit | H5 |
| Class Of Fit | H5 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 12 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 3.0000 |
| Thread Pitch (Decimal Inch) | 0.0833 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Thread Length (Decimal Inch) | 2.0000 |
| Overall Length (Decimal Inch) | 6.0660 |
| Shank Diameter (Decimal Inch) | 1.1080 |
| Square Size (Decimal Inch) | 0.8280 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
