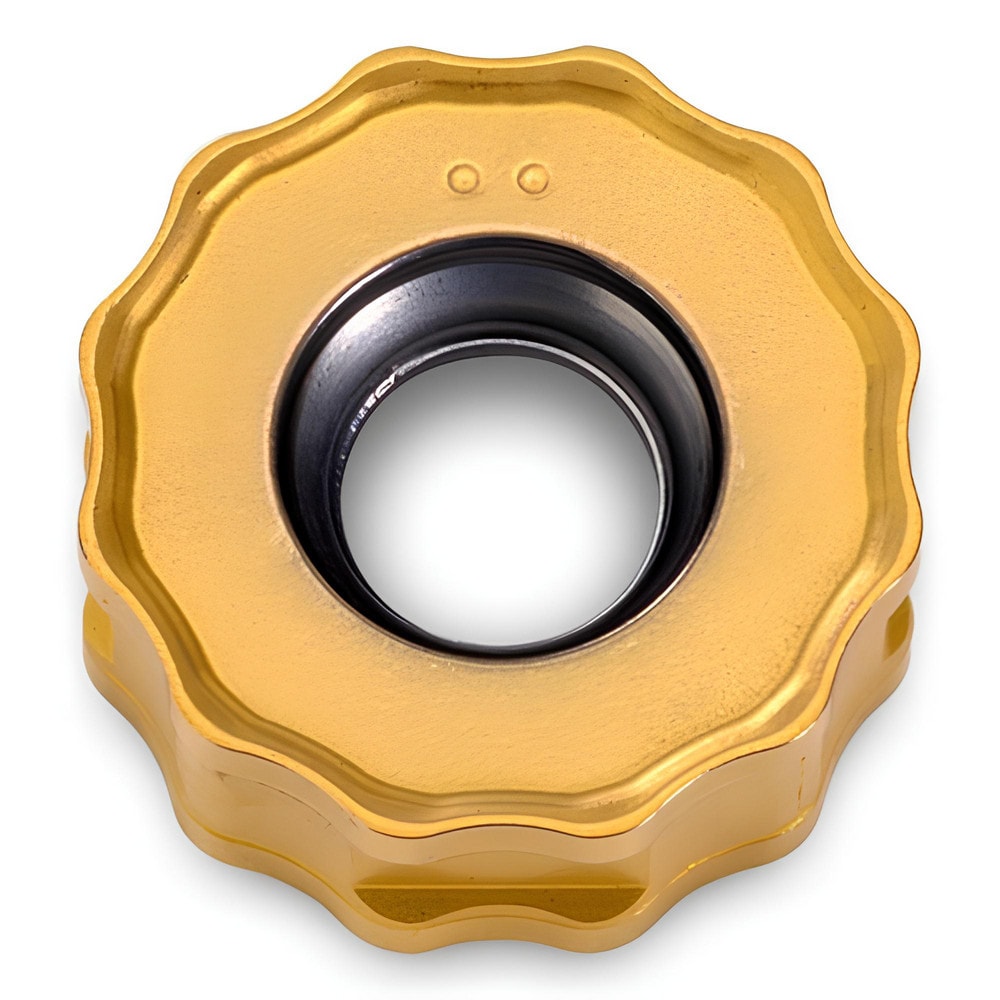

Brand: Ingersoll Cutting Tools / Part #: 6126891
Item #: 67305011
Brand: Ingersoll Cutting Tools
Model #: 6126891
Product Specifications
| Insert Style | RNLU |
| Insert Size Code | 1205 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2504 |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (mm) | 6.00 |
| Insert Hand | Neutral |
| Series | RNLU |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 6.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | RNLU1205MON-S |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | RNLU1205MON-S IN2504 |
| Cutter Series Compatibility | 1DE6H; 1DE1H; DE6H |
| Chip Breaker | S |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 6.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Length | 12.00 |
| Width (Mm - 2 Decimals) | 12.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1730 |
| Multi-Use Tool | Yes |
