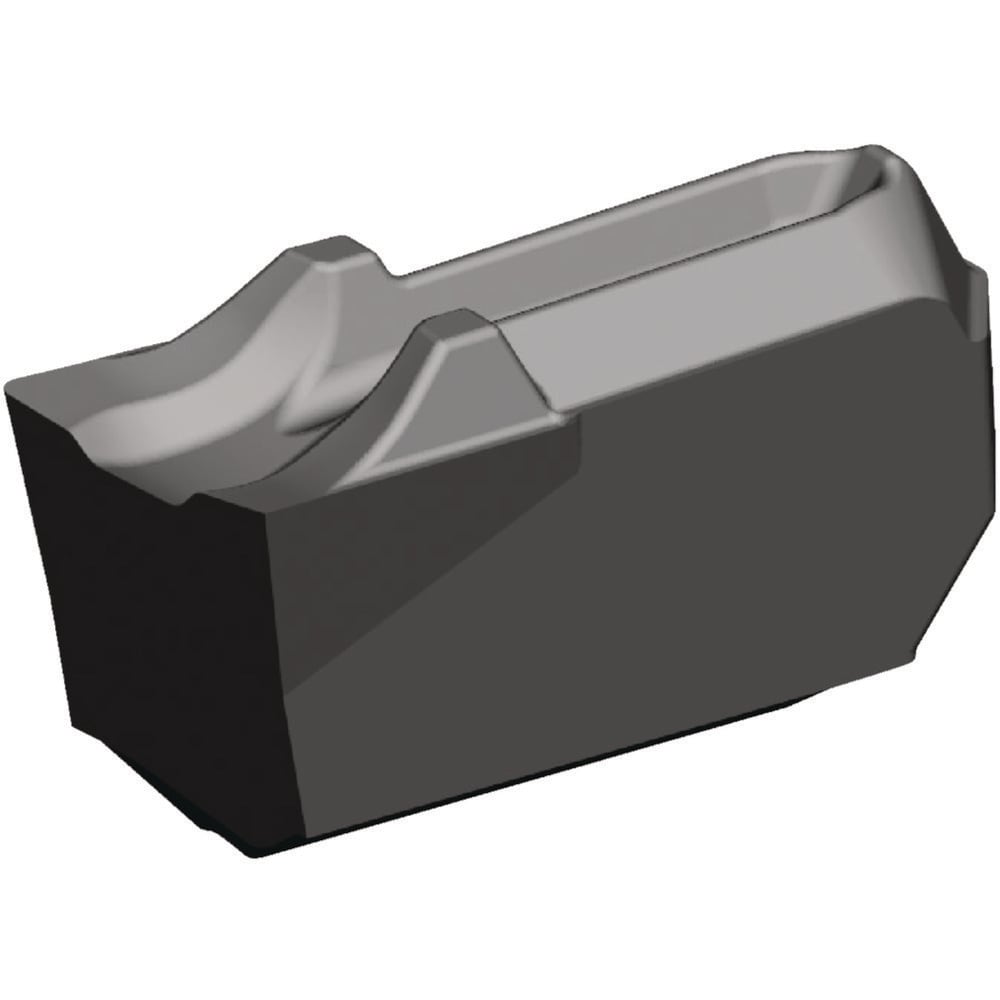

Brand: Widia / Part #: 6470546
Item #: 93310167
Brand: Widia
Model #: 6470546
Product Specifications
| Insert Style | WGC |
| Insert Size Code | 014M |
| Insert Material | Carbide |
| Manufacturer Grade | WU25PT |
| Cutting Width (Decimal Inch) | 0.0550 |
| Cutting Width (mm) | 1.400 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 6.000 |
| Relief Angle | 10.500 |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0057 |
| Chipbreaker | F |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-Off |
| Series | WGC |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3552 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Ansi Code | WC014M1BR06F01 |
| Iso Code | WC014M1BR06F01 |
| Cutting Height (Decimal Inch) | 0.1229 |
| Manufacturers Catalog Number | WC014M1BR06F01 |
| Insert Seat Size | 1B |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3552 |
| Coating Classification | PVD |
| Insert Width (Decimal Inch) | 0.0450 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0550 |
| Coating/Finish | AlTiN |
| Single Or Double End | Single |
