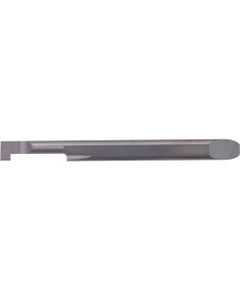

EZGR 050050150 PR1225 Grade PVD Carbide, Micro Internal Grooving Bar
Item #: KY90TKB03412
Brand: Kyocera Precision Tools
Model #: TKB03412
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Usable Length (LU) | 20 mm |
| Minimum Bore Diameter (DMIN) | 5 mm |
| Shank Height (H) | 4.3 mm |
| Functional Length (LF) | 52.8 mm |
| Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
| Style | EZG |
| Coating | MEGACOAT |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Grade | PR1225 |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Application | | Micro Int. Grooving | |
| Series/List # | EZB |
| Applicable Material | | Stainless Steel | |
| Measurement Type | Metric |
| Corner Radius (RE) | 0.002″ |
| Overall Length (OAL) | 52.8 mm |
| Functional Width (WF) | 2.15 mm |
