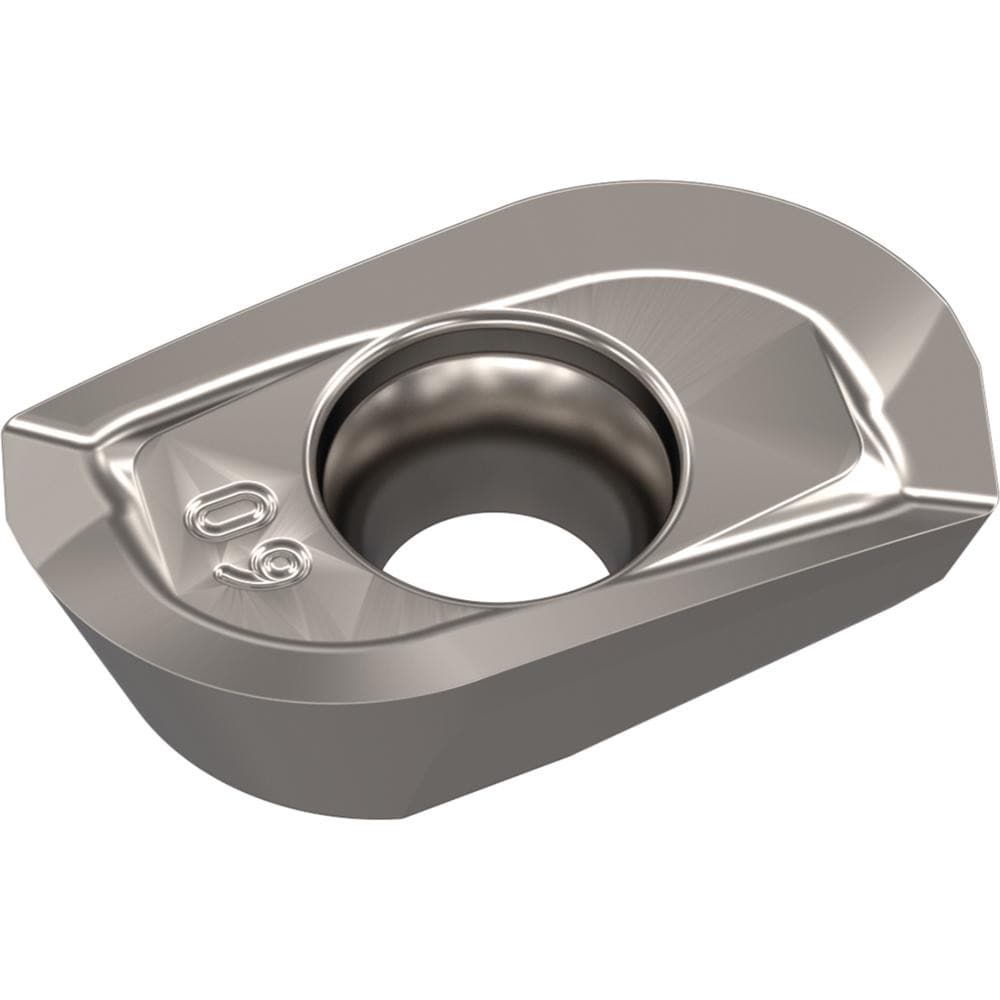

Brand: Widia / Part #: 6007345
Item #: 16105447
Brand: Widia
Model #: 6007345
Product Specifications
| Insert Style | XDCT |
| Insert Size Code | 1704 |
| Insert Size | 17 |
| Insert Material | Carbide |
| Manufacturer Grade | WN10HM |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | VSM17 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.6577 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | XDCT1702RALP |
| Iso Code | XDCT170408PEFRALP |
| Manufacturers Catalog Number | XDCT1702RALP |
| Cutter Series Compatibility | VSM17 XDCT |
| Chip Breaker | ALP |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1930 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7540 |
