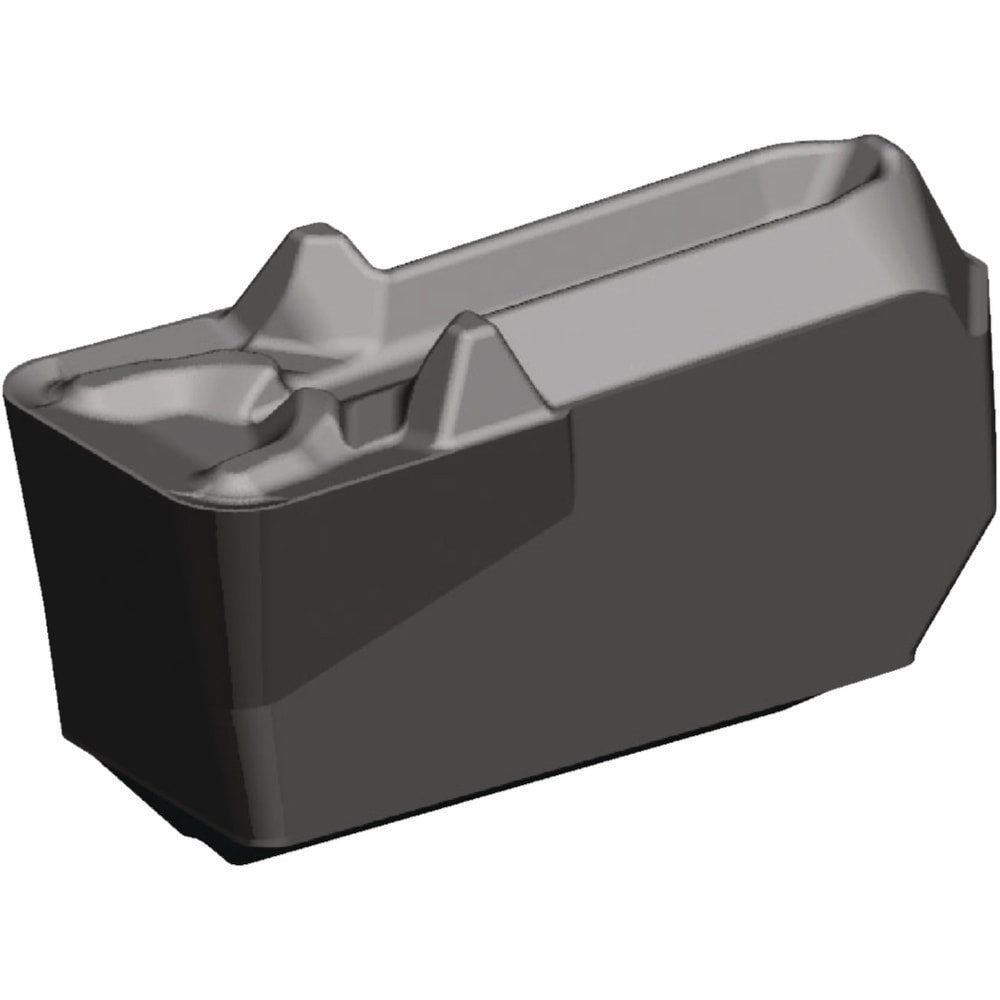

Brand: Widia / Part #: 6470835
Item #: 94418571
Brand: Widia
Model #: 6470835
Product Specifications
| Insert Style | WGC |
| Insert Size Code | 3 |
| Insert Size | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | WU25PT |
| Cutting Width (Decimal Inch) | 0.1300 |
| Cutting Width (mm) | 3.300 |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (Inch) | 1/16 |
| Maximum Depth of Cut (mm) | 1.60 |
| Insert Holding Method | Clamp |
| Cutting Height (Inch) | 1/16 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Lead Angle | 10.500 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | WGC |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3780 |
| Overall Length (mm) | 9.6000 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Ansi Code | WG130I03U05PN |
| Iso Code | WG130I03U05PN |
| Relief Angle | 10.5 |
| Maximum Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturers Catalog Number | WG130I03U05PN |
| Insert Thickness (Decimal Inch) | 0.1581 |
| Minimum Groove Width (mm) | 3.30 |
| Type | WGC Groove And Turn Insert |
| Maximum Groove Width (mm) | 3.30 |
| Minimum Insert Width (mm) | 2.58 |
| Chip Breaker | PN |
| Insert Seat Size | 3 |
| Style | WGC Groove And Turn Insert |
| Insert Height (Decimal Inch) | 0.1581 |
| Full Radius | No |
| Coating Classification | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Overall Width | 2.5800 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1020 |
| Coating/Finish | TiAIN |
| Number Of Cutting Edges | 1 |
| Single Or Double End | Single |
| Groove Width (mm) | 3.30 |
| For Use With | Grooving |
| Insert Thickness | 4.02 |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
