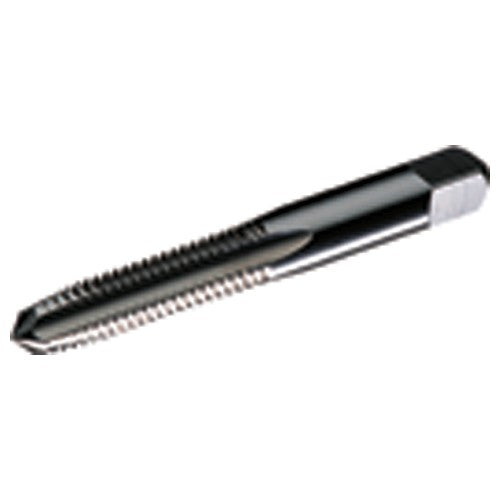

19185 5303TC 1/4 28 NF H3 BOT
Item #: WK302746739
Brand: Widia
Model #: 2746739
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 28 |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | NF |
| Chamfer | 1P-2P |
| Overall Length (OAL) | 2-1/2″ |
| Coating | Ticn |
| Thread Cutting Part Length (THL) | 1″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Thread Size | 1/4″ - 28 |
