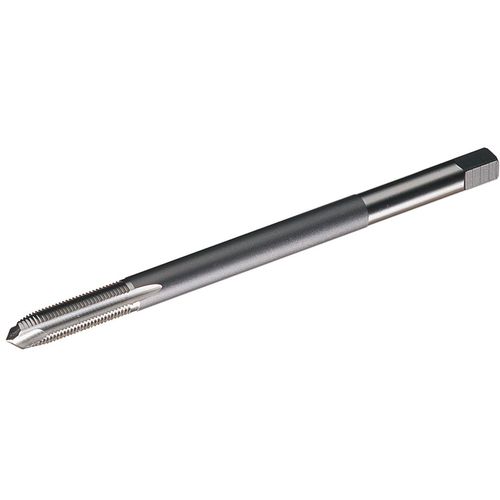

18937 1/4-28HS G H3 2FPL SPPT 6IN
Item #: WK302747026
Brand: Widia
Model #: 2747026
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 28 |
| Chamfer | 3P-5P |
| Thread Standard | NF |
| Coating | Uncoated |
| Overall Length (OAL) | 6″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1″ |
| End Shape | Spiral Point |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Style | Plug |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Square Size | 0.191″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
