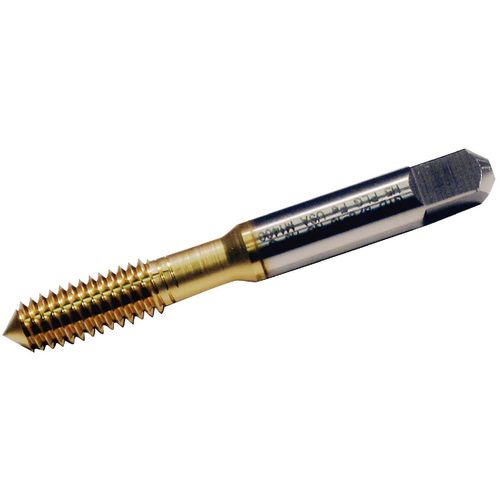

18765 5912 M12X1.75 D11 FE BOTT TIC
Item #: WK302747090
Brand: Widia
Model #: 2747090
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TiCN |
| Thread Diameter Size (TDZ) | M12 |
| Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 1.75 mm |
| Chamfer | 1P-2P |
| Overall Length (OAL) | 3.38″ |
| Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 0.94″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Neutral |
| Thread Tolerance Class (TCTR) | D11 |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Thread Size | M12 × 1.75 |
| Applicable Material | Non-Ferrous Metals|Stainless Steel|Steel |
