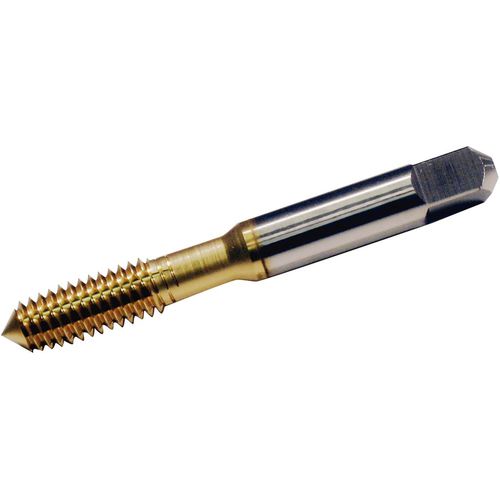

18750 5902 1/2-13NC H5 FE BOTT TICN
Item #: WK302747131
Brand: Widia
Model #: 2747131
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/2″ |
| Threads per Inch (TPI) | 13 |
| Overall Length (OAL) | 3.38″ |
| Chamfer | 1P-2P |
| Thread Cutting Part Length (THL) | 0.94″ |
| Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Style | Bottoming |
| Thread Tolerance Class (TCTR) | H5 |
| Cutting Direction (HAND) | Neutral |
| Thread Standard | NC |
| Shank Type | Round w/ Drive Square |
| Coating | TiCN |
| Thread Size | 1/2″ - 13 |
