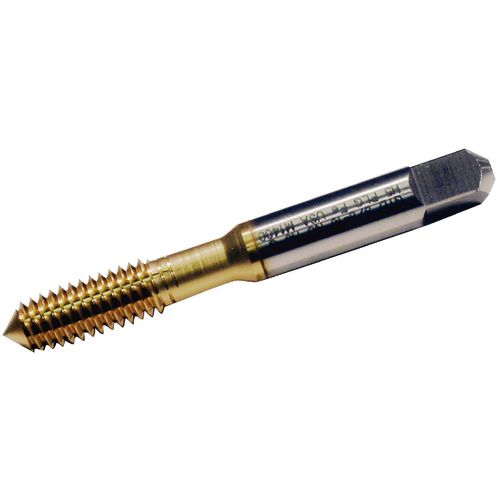

18261 M8X1.25 HS G D9 BOTT FE TAP
Item #: WK302747357
Brand: Widia
Model #: 2747357
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M8 |
| Chamfer | 1P-2P |
| Thread Pitch (TP) | 1.25 mm |
| Square Size | 6.045 mm |
| Overall Length (OAL) | 69.09 mm |
| Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 17.5 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 8.08 mm |
| Cutting Direction (HAND) | Neutral |
| Thread Tolerance Class (TCTR) | D9 |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Thread Size | M8 × 1.25 |
| Coating | Uncoated |
