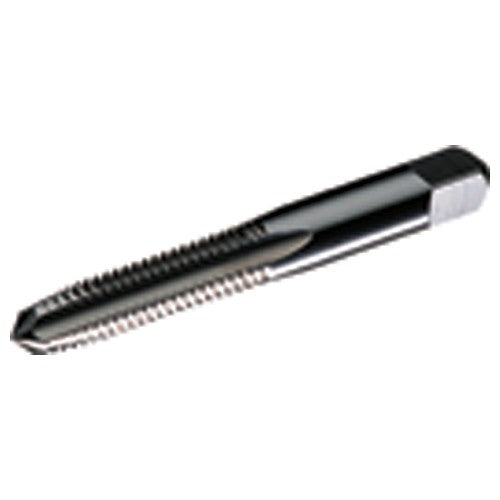

14743 5353 M3 × 0.5 D3 BOT TAP
Item #: WK302749204
Brand: Widia
Model #: 2749204
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3 |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 0.5 mm |
| Chamfer | 1P-2P |
| Thread Standard | Metric |
| Coating | Uncoated |
| Overall Length (OAL) | 1-15/16″ |
| Style | Bottoming |
| Thread Cutting Part Length (THL) | 0.62″ |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Size | M3 × 0.5 |
| Flute Count (NOF) | 3 |
