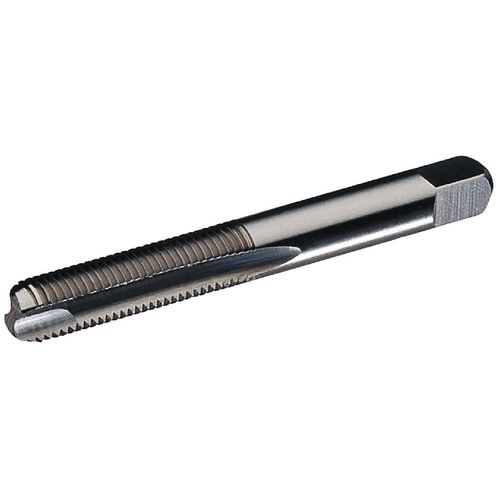

13636 12-24 HS G H3 2F BOT SP PT
Item #: WK302749916
Brand: Widia
Model #: 2749916
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #12 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 |
| Chamfer | 3P-5P |
| Thread Standard | NC |
| Coating | Uncoated |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 15/16″ |
| End Shape | Spiral Point |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Style | Bottoming |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Square Size | 0.165″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gage |
