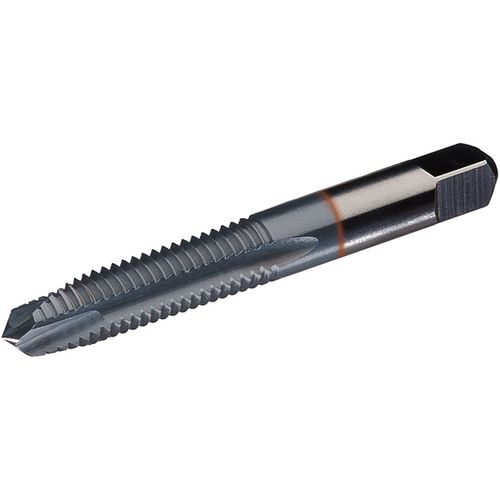

19482 5301TC 12-28NF H3 2F GUN TAP
Item #: WK303171130
Brand: Widia
Model #: 3171130
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Thread Size | #12 - 28 |
| Thread Cutting Part Length (THL) | 15/16″ |
| Thread Diameter Size (TDZ) | #12 |
| Flute Type | Spiral |
| Threads per Inch (TPI) | 28 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | H3 |
| Style | Plug |
| Overall Length (OAL) | 2-3/8″ |
| Shank Type | Round w/ Drive Square |
| Chamfer | 3P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Measurement Type | Wire Gauge |
