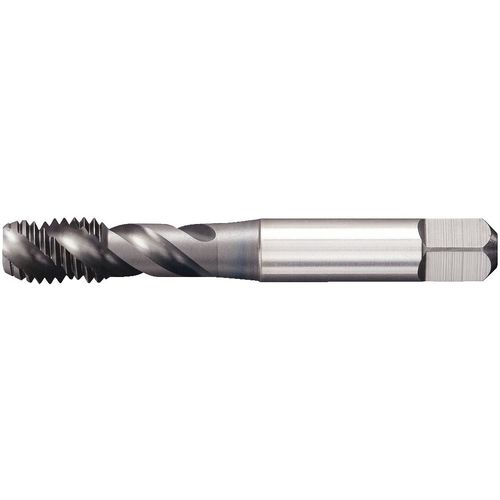

GT305016 1/2-13 3BX RHSF SBOTT
Item #: WK343955146
Brand: Widia
Model #: 3955146
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | 3BX |
| Threads per Inch (TPI) | 13 |
| Standard | ANSI |
| Thread Standard | NC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 3.38″ |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.77″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 0.275″ |
| Applicable Material | Stainless Steel |
| Measurement Type | Fractional |
| Cutting Edge Material | HSSCoPM |
