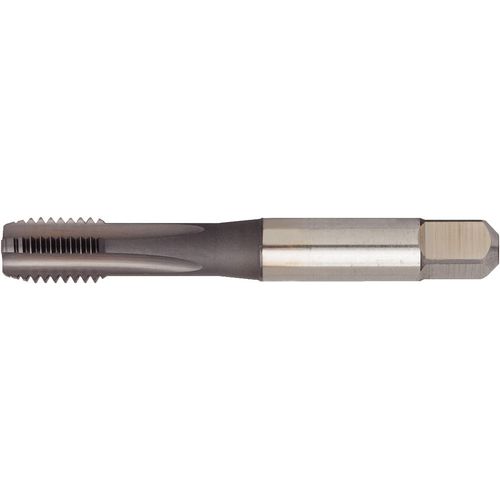

GT405018 5/16-18 2BX STFL SBOTT
Item #: WK344035541
Brand: Widia
Model #: 4035541
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 18 |
| Chamfer | 2P-3P |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 2.72″ |
| Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.49″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Cutting Direction (HAND) | Neutral |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Square Size | 0.238″ |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2BX |
| Thread Size | 5/16″ - 18 |
