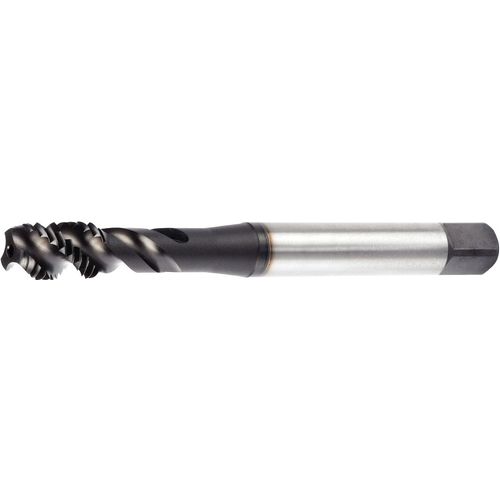

GT335003 M8X1.25 6HX RHSF BOTT 371
Item #: WK344153957
Brand: Widia
Model #: 4153957
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1.25 mm |
| Standard | DIN371 |
| Thread Standard | Metric |
| Chamfer | 1P-2P |
| Overall Length (OAL) | 90 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 13 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | 45 Degrees |
| Square Size | 6.2 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
