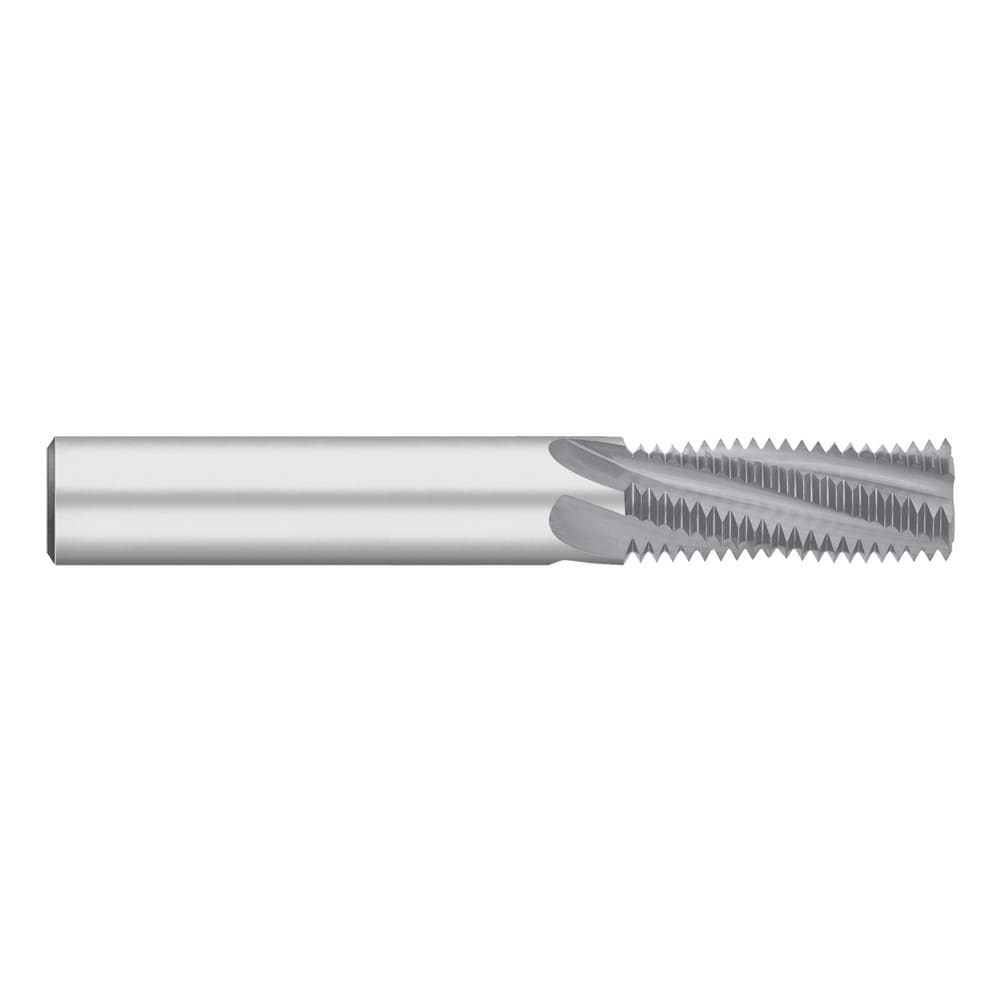

Brand: Titan USA / Part #: TC83905
Item #: 87721098
Brand: Titan USA
Model #: TC83905
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | #8-36 |
| Thread Depth | 0.25 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Cutting Diameter (Decimal Inch) | 0.1150 |
| Length of Cut (Inch) | 1/4 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1640 |
| Shank Length (Decimal Inch) | 1.7500 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Number Of Flutes | 3 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Thread Length (Decimal Inch) | 0.2500 |
