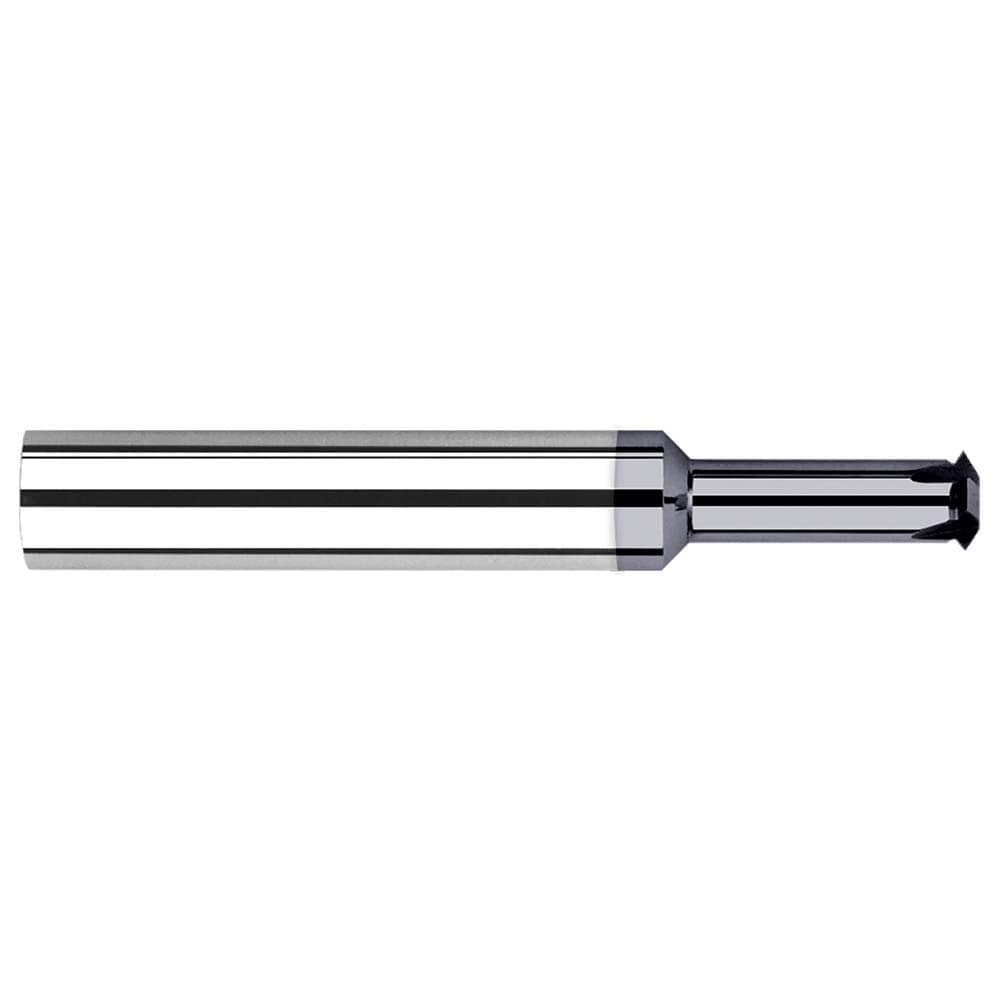

Brand: Harvey Tool / Part #: 993945-C3
Item #: 82498817
Brand: Harvey Tool
Model #: 993945-C3
Product Specifications
| Maximum Threads Per Inch | 56 |
| Minimum Pitch (Decimal Inch) | 0.0417 |
| Minimum Threads Per Inch | 24 |
| Maximum Pitch (Decimal Inch) | 0.0179 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | #12-24 - #12-56 |
| Thread Depth (Decimal Inch) | 1.1250 |
| Shank Diameter (Inch) | 1/4 |
| Cutting Diameter (Decimal Inch) | 0.1600 |
| Minimum Nominal Diameter (Inch) | #12 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Neck Diameter (Decimal Inch) | 0.0950 |
| Shank Length (Decimal Inch) | 1.3750 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
