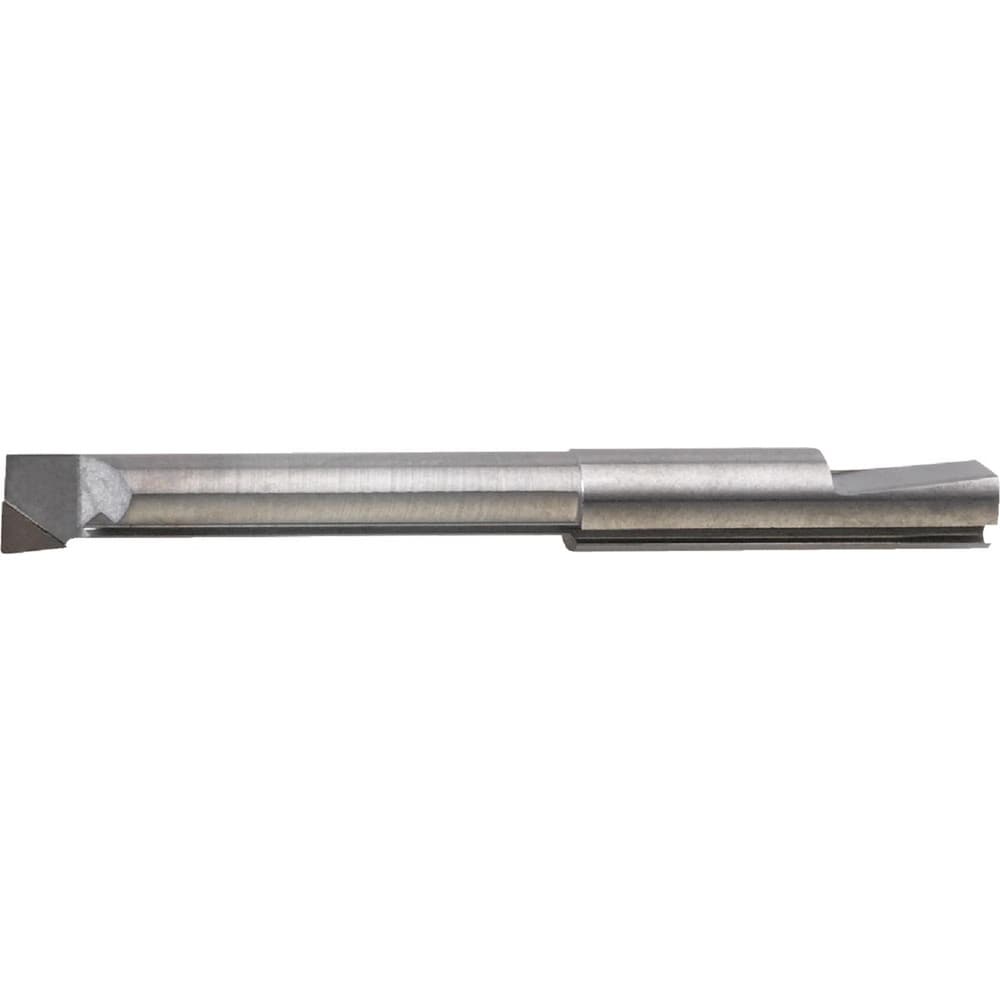

Brand: Widia / Part #: 2836573
Item #: 19303171
Brand: Widia
Model #: 2836573
Product Specifications
| Boring Bar Type | Micro Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1560 |
| Material | Solid Carbide |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 5/32 |
| Finish Coating | Titanium Nitride |
| Bar End Angle | 2 |
| Manufacturer Grade | CG5 |
| Series | ABD |
| Bar Neck Diameter (Inch) | 11/64 |
| Bar Neck Length (Inch) | 1/2 |
| Coating Process | PVD |
| Maximum Bore Depth (Inch) | 1/2 |
| Maximum Depth of Cut (mm) | 0.07 |
| Minimum Bore Diameter (Inch) | 5/32 |
| Overall Length (Decimal Inch) | 1.1500 |
| Primary Workpiece Material | Stainless Steel; Non-Ferrous Metals; Cast Iron; Steel |
| Projection (Decimal Inch) | 0.5000 |
